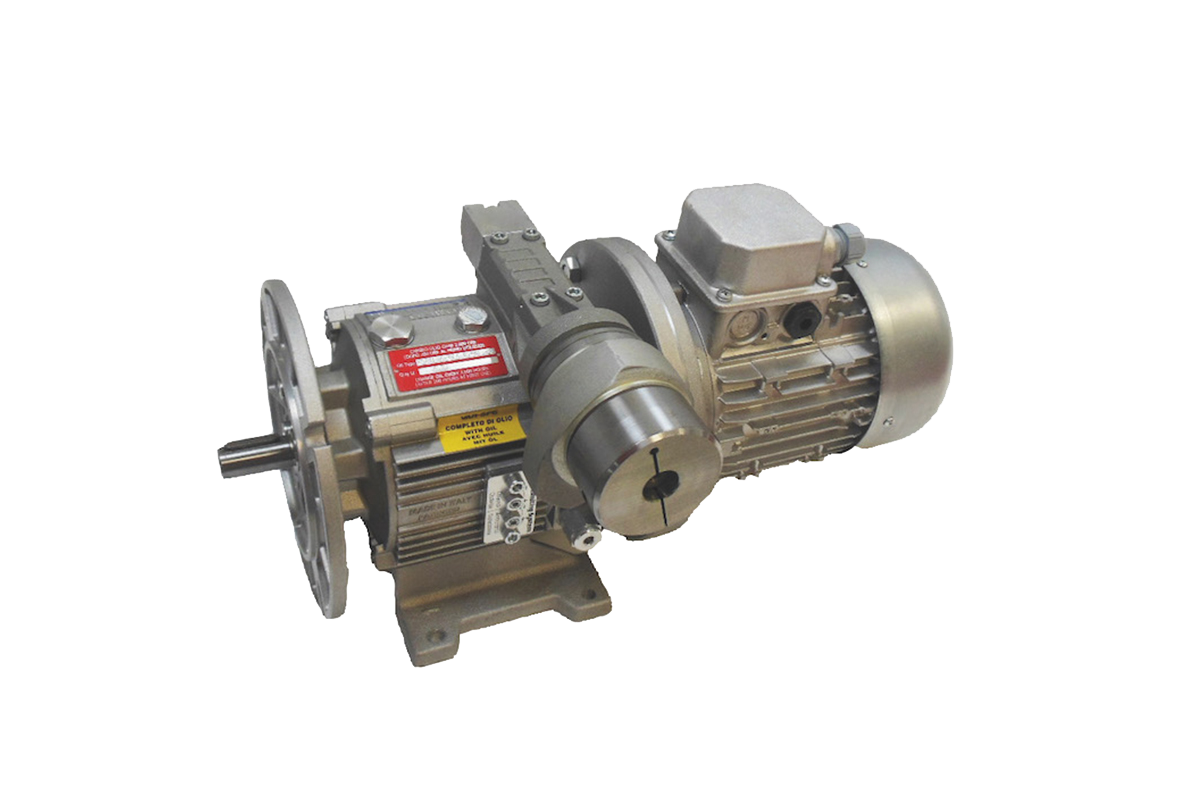

Hydrostatic variable speed gears / variable speed geared motors
A special feature in the field of these transmissions are the hydrostatic variable speed drives from Var-Spe. Both a hydraulic pump and a hydraulic motor, including an oil tank and overload valves, are installed in the housing. With these gears from VAR-SPE, the adjustment is made using many different adjusting devices, such as using a handwheel, electrically, pneumatically or hydraulically. The adjustment range is always between 1400-0-1400 rpm, ie the direction of rotation is reversed in the gearbox itself. The polarity of the electric motor is not reversed.
Var-Spe gearboxes use oil to take advantage of hydraulics. This means that with a high breakaway torque, the internal pressure increases to such an extent that the output shaft "tears loose" the drive. Depending on the type, the maximum engine output is between 0.37 and 22.0 kW. Hydrostatic variable speed drives are ideal for use in explosion-proof areas, as all parts run in an oil bath and there is no mechanical friction. The possible generation of sparks due to friction therefore does not occur.
GEMOTEG supplies these gearboxes with built-on electric motors as hydrostatic variable speed geared motors within a very short time. This results in a wide range of possible uses in a wide variety of applications throughout mechanical and plant engineering. We would be happy to respond to your individual needs and work with you to develop the right drive for you.
You can download extensive technical details from our download area or contact us directly.
Technical specifications
- Motor power range from 0.37 – 22.0 kW can be attached
- Torque from 0.5 - 250 Nm
- Adjustment range 1400 – 0 – 1400 rpm
equipment
- probe flanges
- special shafts
- special feet
- Hand wheel or electrical adjustment option
Variable speed gears / variable speed geared motors
Planetary variable speed gears / planetary variable speed geared motors
Our planetary variable speed gears have an adjustment range of 1:5 and are able to adjust the output speed in the range of approx. 200...1000 rpm. It is possible to carry out the adjustment manually using an adjustment hand wheel or electrically, for example using an electric motor. We would be happy to install an electric motor suitable for your application on the gearbox in our in-house assembly department. The maximum engine power that can be attached is 7.50 kW. There is also the option of having the planetary variable speed drive with a speed display in the hand wheel. B5 input and output flanges are also available for the gearboxes. Together with a mounted gear, such as a worm gear, there are a large number of possible applications in the industrial sector.
The mechanical adjustment gears are filled with lubricant on delivery. If the installation position is not specified, the gearbox will be filled with oil for horizontal installation. An oil change should be carried out after the first 100 operating hours and after every 1,000 hours.
Of course, we also deliver the gearboxes with an attached electric motor that is adapted to your needs as a planetary variable speed gear motor. Talk to us about the requirements for your desired drive.
Extensive technical details can be downloaded from our download area.
Technical specifications
- Available for all gear types
- Motor power range from 0.12 to 4.0 kW can be attached
- Torque from 2 to 3,500 Nm
- Adjustment range 1:5
- Special version with an adjustment between 0….1000 rpm possible

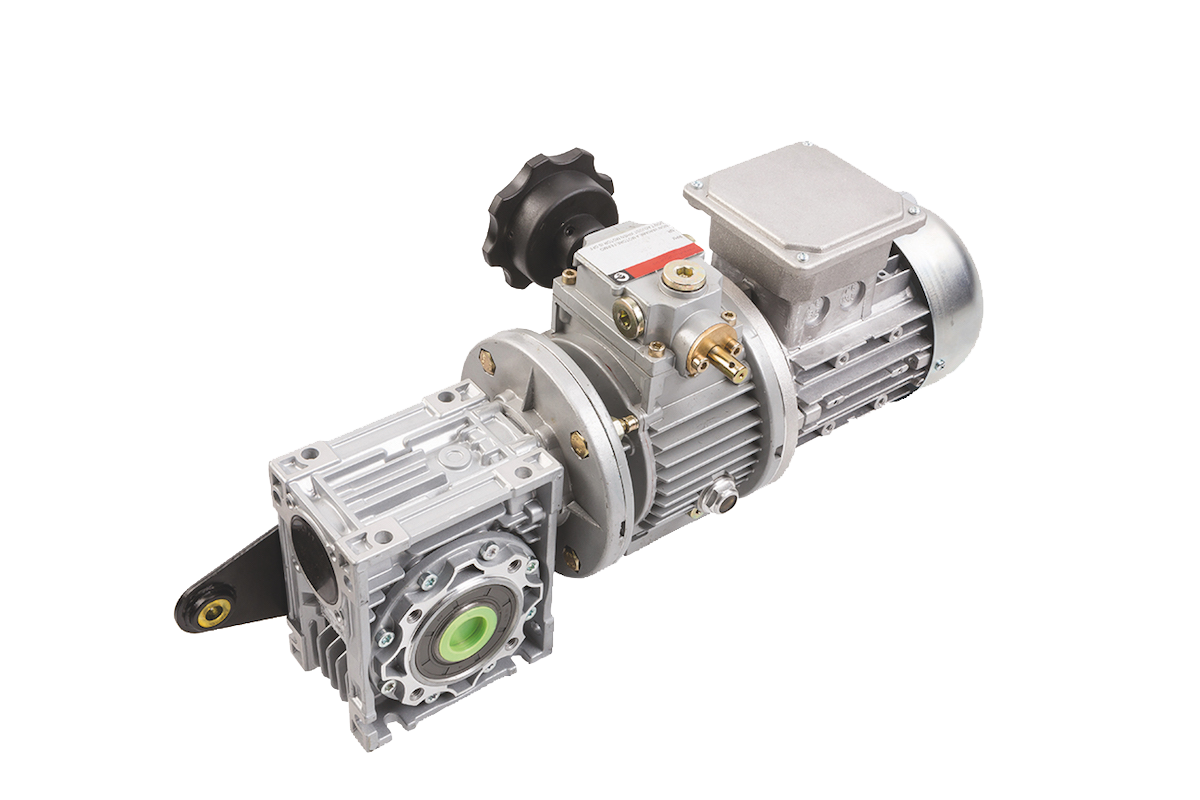

Planetary variable speed gear motor with worm gear
